Position: Home LED street light

Sailing Star Series Street Light

Category: LED street light Model: RD-RQ01/02 Visits: 368
The appearance is streamlined and the beauty is designed to complement the modern architecture;
Efficient heat dissipation design, electrostatic spraying, strong corrosion resistance, long-lasting durability;

Suitable for the scene

It is widely used in any outdoor lighting places such as roads, squares, scenic spots, etc.;

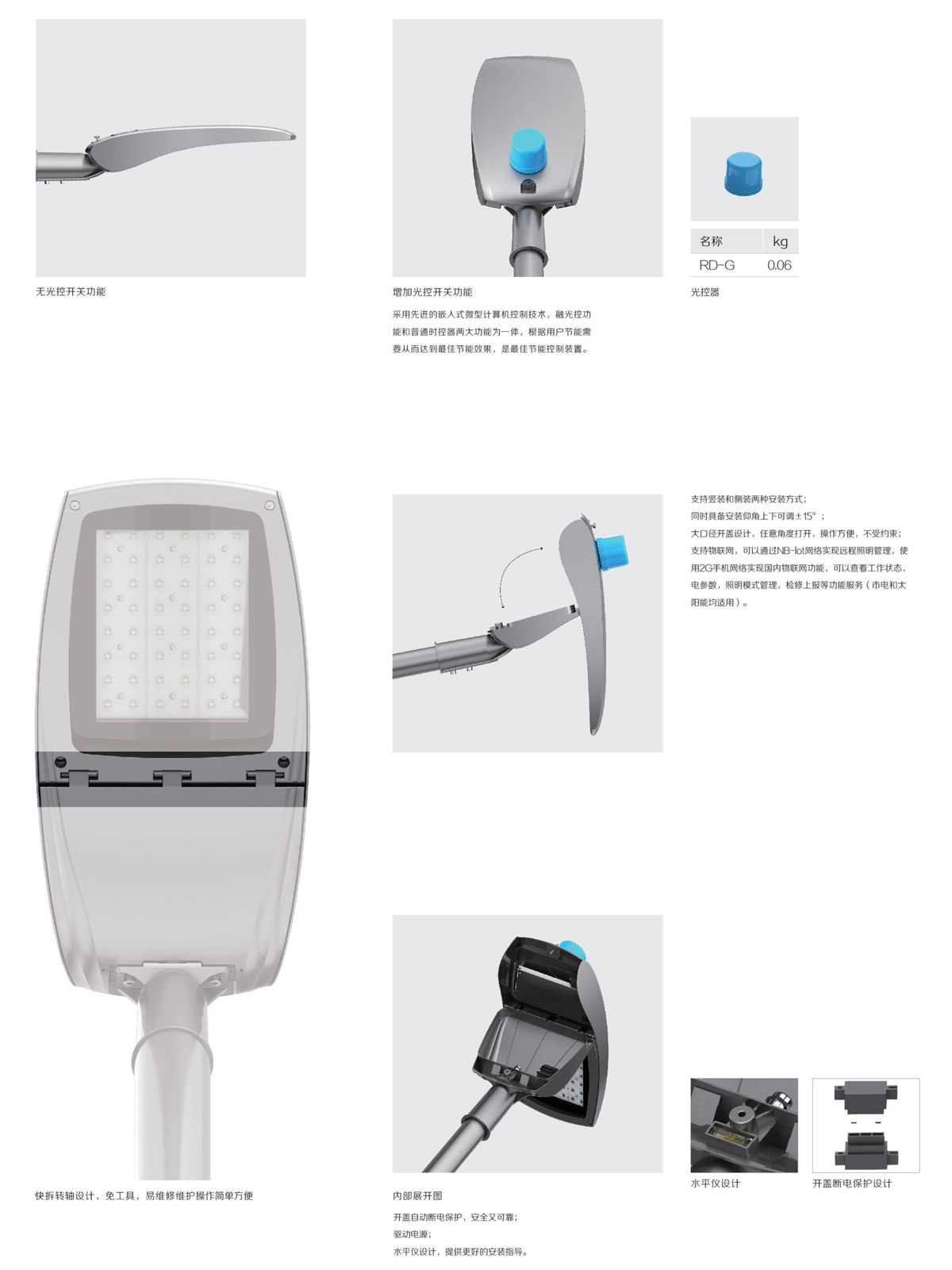

Product features

The appearance is streamlined and the beauty is designed to complement the modern architecture;

Efficient heat dissipation design, electrostatic spraying, strong corrosion resistance, long-lasting durability;

The integrated design achieves a strong structure, light weight, and convenient installation, disassembly and replacement;

Green environmental protection light source, low temperature, no harmful ultraviolet rays;

Modular pluggable design, easy tool maintenance;

Provide professional visual comfort and safety lighting products;

It is widely used in any outdoor lighting places such as roads, squares, scenic spots, etc.;


The lamp body is made of precision casting aluminum alloy, which has high strength and strong impact resistance. The surface is treated with electrostatic powder spraying and has good corrosion resistance;

Adopt wide voltage power supply AC100-277V;

The chip adopts international brands, high power, high quality, long life, high light efficiency;

The LED module and drive power supply can be replaced separately;

Open the cover and power off protection design, safe and reliable;

Rotatable installation sleeve to meet different installation methods;

All screws are made of 304 stainless steel.

Product parameter
Model RD-RQ01.030 RD-RQ01.060 RD-RQ01.100 RD-RQ02.120 RD-RQ02.150 RD-RQ02.180
Number of LEDs 48PCS 48PCS 48PCS 64PCS 64PCS 64PCS
Rated power 30W 60W 100W 120W 150W 180W
Luminous Flux 120~150LM/W 120~150LM/W 120~150LM/W 120~150LM/W 120~150LM/W 120~150LM/W
Input voltage AC95~305V AC95~305V AC95~305V AC95~305V AC95~305V AC95~305V
Color temperature 2700~6500K 2700~6500K 2700~6500K 2700~6500K 2700~6500K 2700~6500K
LED life > 50000H > 50000H > 50000H > 50000H > 50000H > 50000H
Working temperature -35~50° -35~50° -35~50° -35~50° -35~50° -35~50°
Beam angle See light distribution selection See light distribution selection See light distribution selection See light distribution selection See light distribution selection See light distribution selection

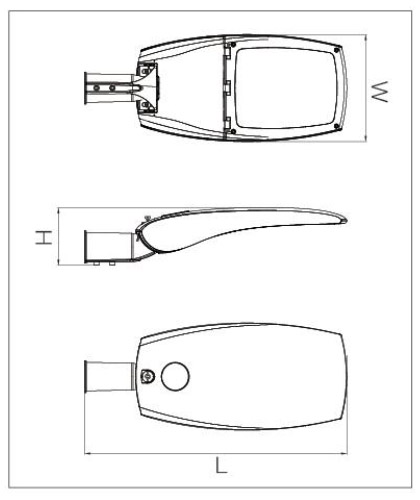

Model RD-RQ01 RD-RQ02
L 680 780
W 325 325
H 120 120
Show details

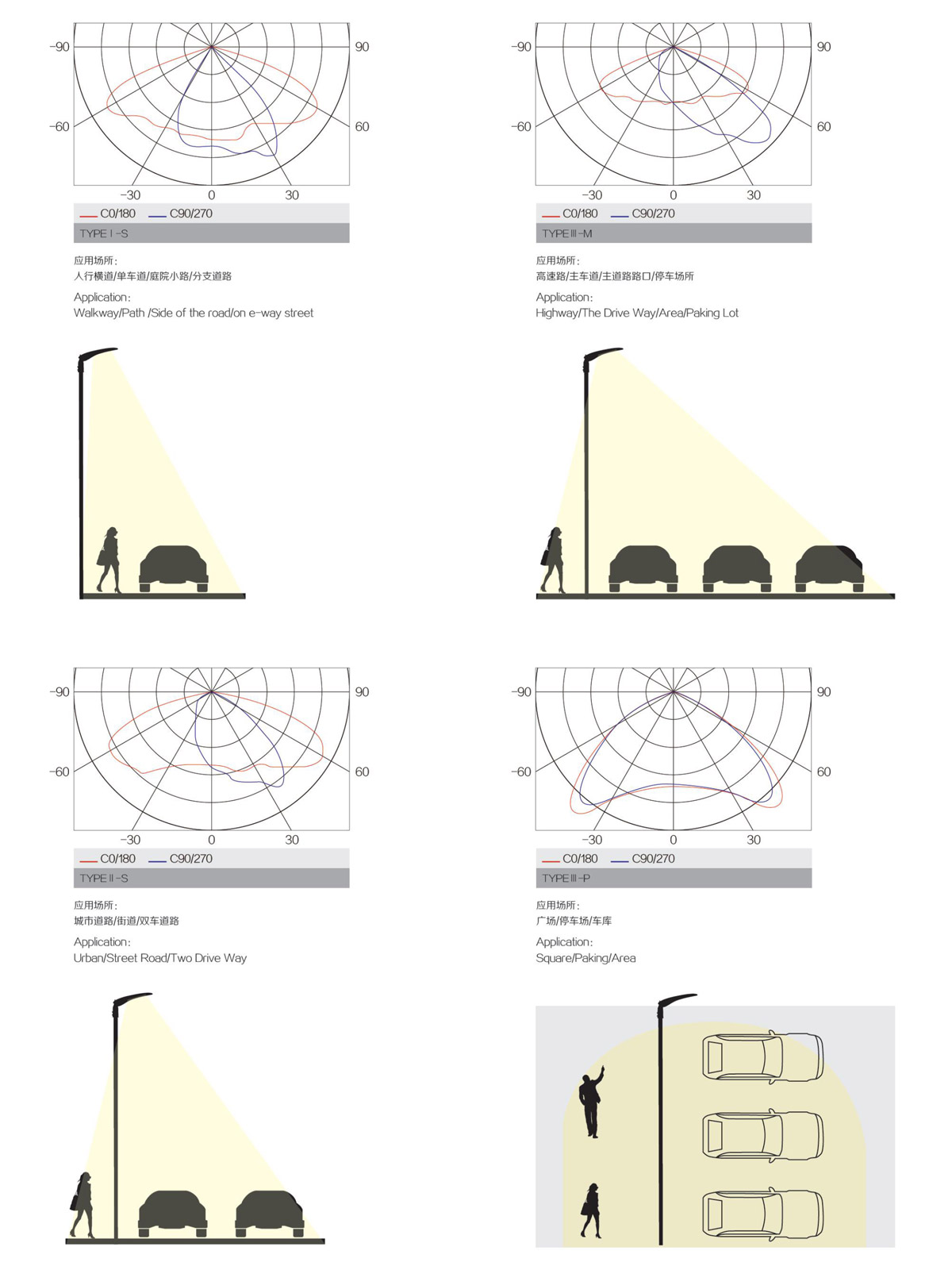

Light distribution selection
